304 stainless steel cabbage shredding machine vegetable cutting machine

FOB Reference Price:Get Latest Price
US $6,000-20,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
COLEAD
Type:
Washer
Certification:
ISO9001,CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details
Plywood Case
Port
Qingdao



Hot Sale 304 stainless steel cabbage shredding machine vegetable cutting machine

_



Vegetable Processing Line

This processing line adapt to many kinds vegetables,such like potato, carrot, lettuce, celery,cole, spinach and so on.

Mainly steps:cuting,washing,drying.

.jpg

  7        6              5                     4                    3            2         1

1.six station working table:

                                6 station worktable.jpg

 Apply to primary raw material selecting and cutting treatment.Cut vegetables on the blue chopping board  .Waste is discharged through the scrap bucket.Processed material transported by a variable



speed conveyor in the middle.The quantity of stations can be customized according to customer

demand.

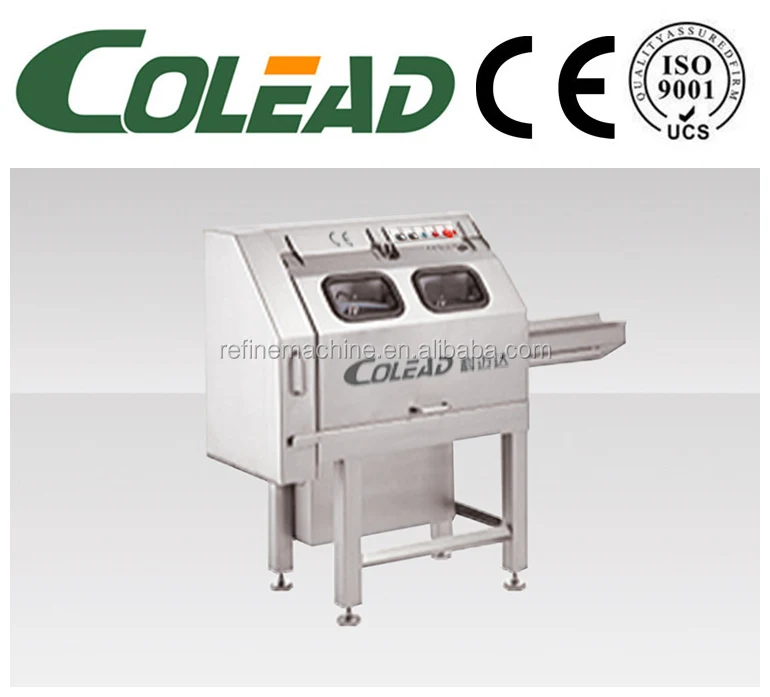

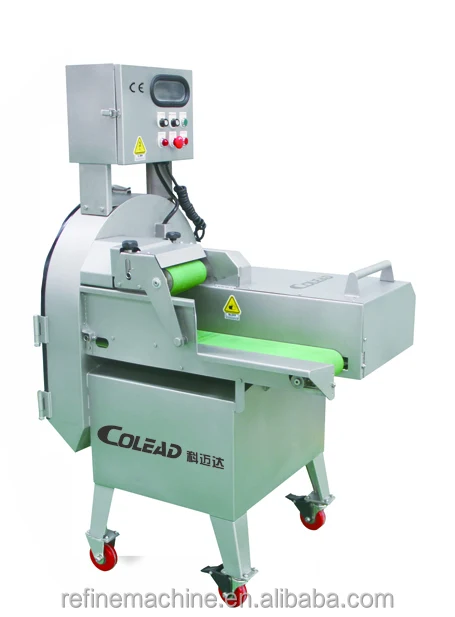

2.Cutting Machine:

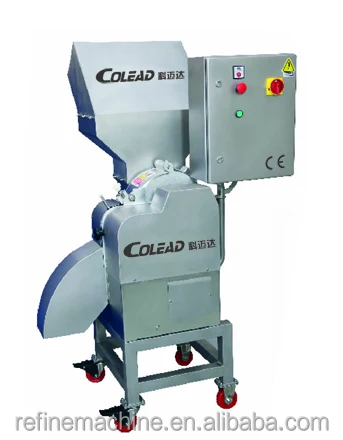

         Dicing Macine                               Cutting Machine



Use for dice root vegetables like potato,carrot               Use for  cut leaf vegetables like celery,

and so on.                                                                      spinach, lettuce, onion and so on.

                                                                                    Cutting shape:Shred, slice, section.



We also have multifunction cutting machine for your choice.Use for dice,slice,shred.

3.Elevator




1.Activities side panels,quick disassemble belt for easy cleaning.

2.Angle and height of elevating can be adjusted.

3.Wheels was set at the bottom,adjustable elevating speed.

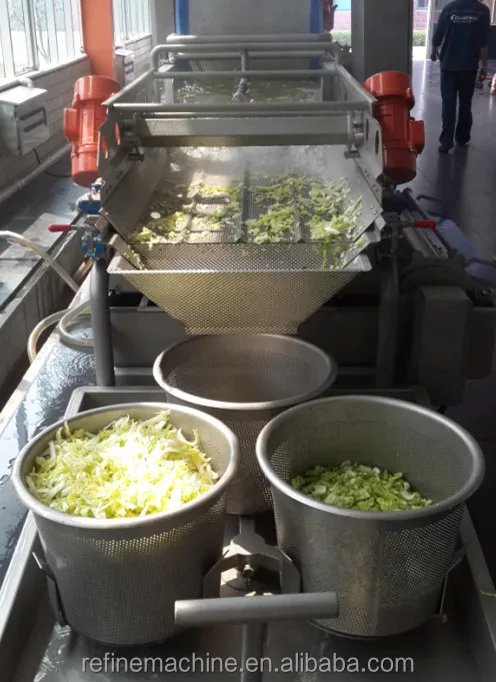

4.Washing Machine(High)

horizontal mixed water spraying washing machine.jpg

This machine forms spiral water flow to wash vegetables.Prolong the washing length and make the

vegetables cleaner.Being output to vibration draining device together with water flow,the materials

being separated with water and output by vibrator,and enter into next procedure after clean water

spray.Water and impurities are filtered by filter screen.The water is recycled by high pressure pump.

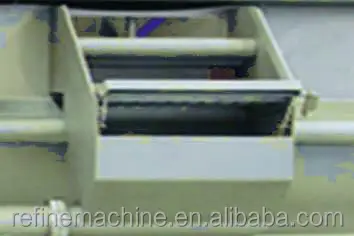

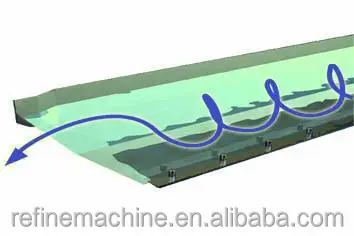

spiral water flow                                                        filter and recycled water device

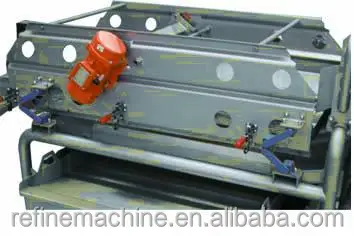

impurities collect device                                                    spraying vibrator



Model

Dimension

(mm)

Power

(Kw)

Water Volume

(m³)/

Water Supply

(m³/H)

Voltage/Fequency

(V/Hz)

WQK-CL-3000-F-B

3200×1340×1465

3.1

1.0/0.2

380/50

WQK-CL-3000-F-J

3200×1340×1880

3.1

1.0/0.2

380/50

WQK-CL-4000-F-B

4000×1340×1465

3.8

1.26/0.2

380/50

WQK-CL-4000-F-J

4000×1340×1880

3.8

1.26/0.2

380/50

WQK-CL-5000-F-B

4920×1340×1465

5.65

1.57/0.2

380/50

WQK-CL-5000-F-J

4920×1340×1880

5.65

1.57/0.2

380/50



5.Washing Machine

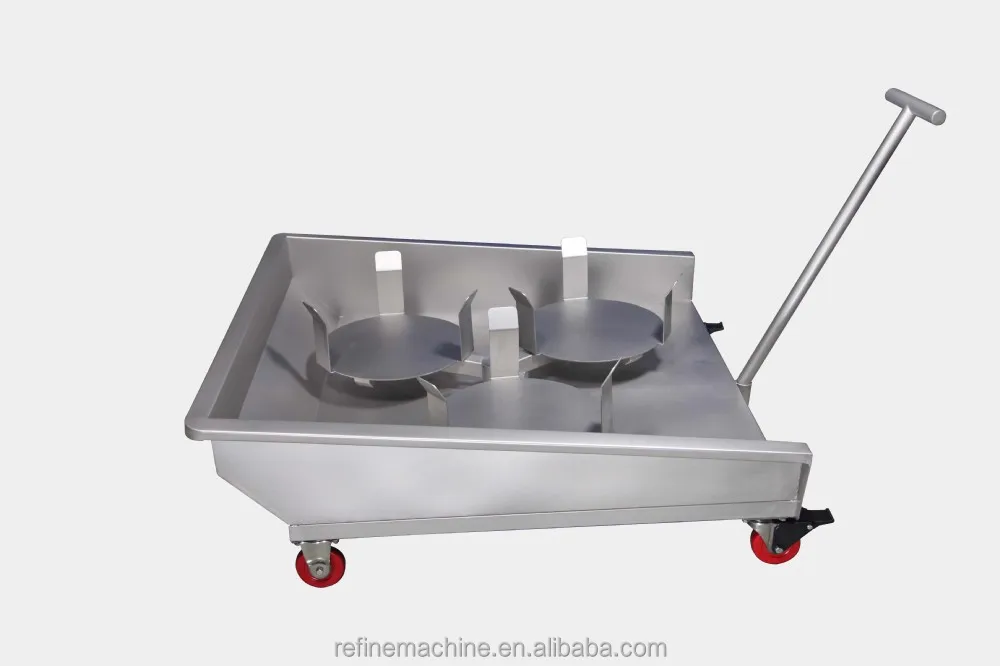

6.Roating vehicle

QQ20141129131523.jpg .jpg

This vehicle has 3 rotating position to hold vegetable basket.

7.Centrifugal dewater drying machine

 .jpg



1. The main body of the machine is made of SUS304 stainless steel, hygienic and easy to clean.

2. Adopts frequency conversion technology and photoelectric sensing technology,  to achieve full

control towards dehydration time, spin speed and start and stop. The running is safe and the

operation is easy, with low noise.

3. Open cover structure design uses oil and gas hybrid damping spring,  visible window design,

easy to use.

Contact us:

Jenny Zhang
Skype:jennydownsnow
QQ:2269894499
Whatsapp:0086-137-9217-7658
Tel:0086-137-9217-7658

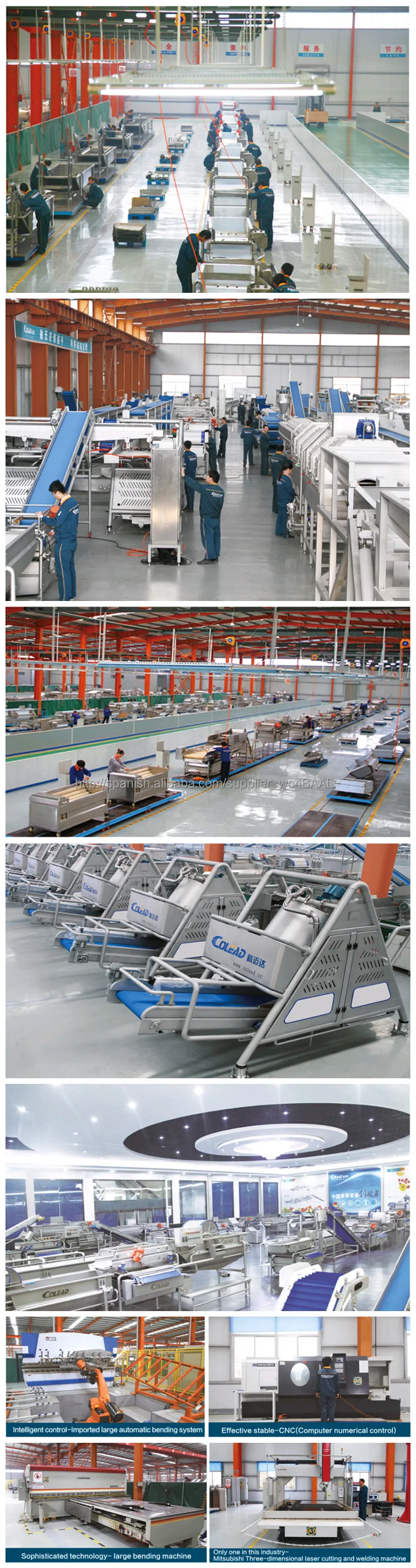

Our company:
